◆ Features
Operating voltage range: 3.5 ~ 10.5V
Rail to Rail voltage output
Rated output current: 6 mA
Stable switching signal without mechanical contact and spark
High reliability and safety without shaking moment
TO-92UA and SOT23-3L package options
Developed according to the EU RoHS and REACH
◆ Outline

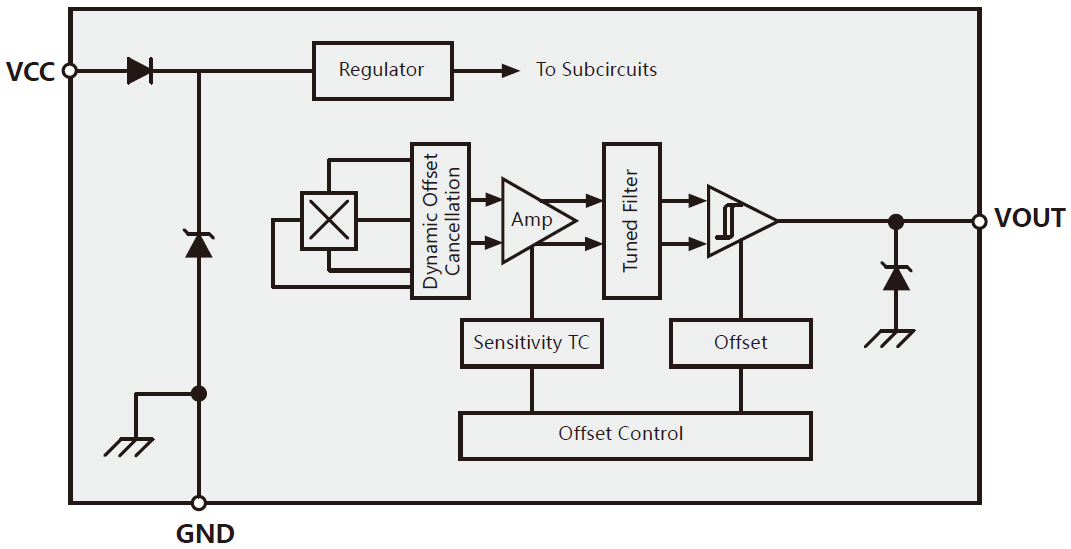

The AH3517 is an analog signal output Hall IC, the output voltage changes with the changes of magnetic field. It has built-in circuit units such as reverse voltage protector, voltage regulator, temperature compensation circuit, Hall voltage generator, signal amplifier, etc. The high performance voltage regulator and temperature compensation circuit ensure that the sensor operates steadily over a wide range of voltages, and the reverse voltage protection circuit prevents the sensor from being damaged by the reverse voltage.
The AH3517 is produced with bipolar technology. It is available in two package types: SOT-23-3L (Type M), and TO-92UA (Type UA). Each package is lead (Pb) free, with 100% matte tin plated leadframes.
