Do you know the Application of Hall Devices in Resolution?

06. 04, 2020

Low Resolution Applications

As a Bipolar Hall IC China Factory, share with you. An exceptional instance of an application that makes use of discrete position sensing is an auto shift selector. In change selectors there are commonly as few as 5 discrete settings (Park, Reverse, Neutral, Drive as well as Low). With a unipolar switch placed at each individual setting (P, R, N, D, and also L), each switch just switches on when the magnet in the shifter is relocated straight adjacent to the switch.

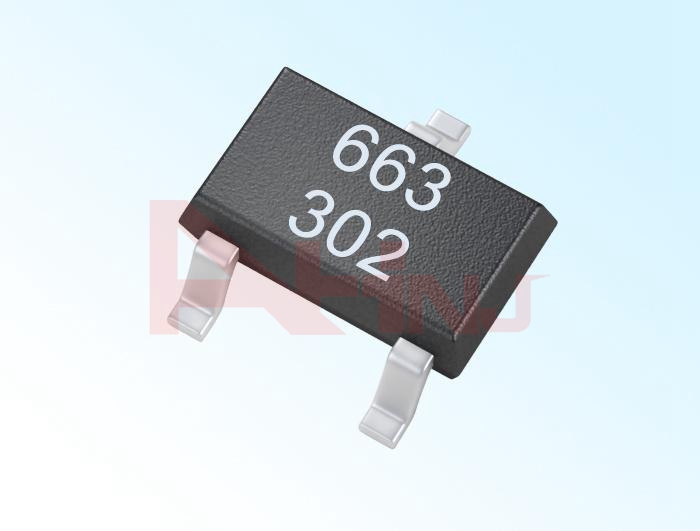

Micropower Omnipolar Hall Sensor

Micropower Omnipolar Hall Sensor

Hall IC can be utilized as closeness switches, matched 1-to-1 with noticed settings, or ranged to give added noticing positions via evaluation of magnetic cross talk using numerous devices.

Must the developer need additional settings, the spacing between the tools can be lowered to produce "cross talk" between the tools. In this fashion added placements are gotten when the magnet is sufficiently near to 2 gadgets such that they are both turned on, thus enhancing the variety of placements from, for instance, five to 9. Straightforward Binary Coded Decimal (BCD) systems, or advanced systems such as Gray code or Densely Packed Decimal (DPD), can be made use of to translate the logic as well as obtain positional information.

Likewise this tactic could be made use of to feeling liquid levels in a tank using a flotation device with a magnet inside. As the magnet drifts up and down with the adjustments in the degree of the liquid, distinct degrees are determined through which sensor IC remains in the on state.

Level noticing application in fluid container; round float with button magnet inside flights on the liquid surface, while Hall tools and circuitry are totally isolated in a different chamber.

High Resolution Applications

It can be seen very promptly from the change selector example that distinct setting or level picking up is optimal when just a few positions are called for. This technique of including a gadget for every setting really swiftly ends up being price prohibitive and also spatially challenging when the application needs better resolution.

Get in the linear Hall-effect tool with an analog outcome. Comparable to the electronic switches, there is an abundance of attributes offered in linears; for example, ratiometric outcomes, customer programmability, electronic outcomes (such as PWM), and also unidirectional or bidirectional sensing. Like in the coming before description of gadgets for discrete positions or levels, this discussion will certainly focus just on common straight Hall-effect sensor ICs: their ways of operation and also application usages.

Many typical direct Hall-effect sensing unit ICs have ratiometric outcomes (0.5 × VDD) that respond proportionately to magnetic field strength. These devices usually require a regulated 5.0 V supply and also the QVO (quiescent voltage result, VOUT(Q)) is 2.5 V when there is no considerable magnetic field present. The output voltage increases when sensing a raising magnetic field southern post of a magnet, coming close to 5.0 V. Conversely, the output voltage will certainly decrease when sensing an increasing magnetic field from the north pole of magnet, coming close to 0 V. Our company also Micropower Omnipolar Hall Sensor has for sale, share with you.
