What is the Significance of Hall effect Sensor Used in Building Automation?

08. 03, 2020

As a Latch Type Hall Sensor Factory, share with you. The primary trends in today's structure automation and individual electronic devices market include miniaturization and portability, together with raising knowledge and also lower prices. Attaining these trends, nevertheless, requires both challenges and tradeoffs. Among one of the most appealing modern technologies for this market is Hall-effect sensing.

The Hall-effect concept is a prominent magnetic sensing innovation designed by Edwin Hall in 1879. The principle is just a differential voltage generated in a current-carrying conductor, typically called a Hall element, when applying a vertical electromagnetic field to the conductor. The voltage is an outcome of a Lorentz pressure caused by the applied magnetic field, which triggers the current electrons to concentrate in one end of the conductor and produce a possible difference between the two ends.

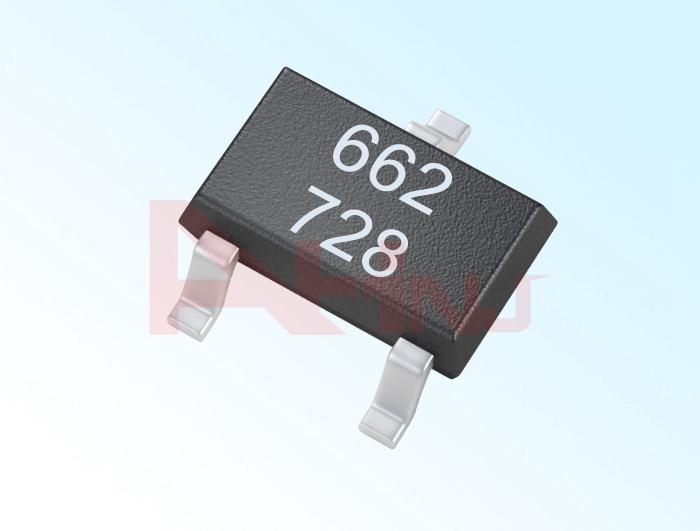

Micropower Hall Sensor

Hall-Effect Sensing Benefits

Hall-effect sensors have verified to be one of one of the most prominent magnetic field sensors for numerous reasons:


Reduced power usage

Little impact



Distance sensing

Adaptability (button, latch, linear as well as numerous magnetic thresholds).

True strong state.

Lengthy lifetimes.

Ability to run with stationary input (no speed).

Absence of moving parts.

Logic-compatible input and outcome.

Broad temperature level range (− 40 to +150 ° C).

These features equate right into numerous electrical and magnetic requirements in a specific gadget data sheet. You can find out more about these requirements as well as just how to translate them in "Recognizing & Using Hall Effect Sensor Datasheets" application note.

Kinds Of Hall-Effect Sensors.

Hall-effect sensing units are configurable for various applications. They can typically be categorized into 2 groups: threshold-based and straight.

Threshold-based Micropower Hall Sensor can serve as a button that reacts to either magnetic poles with a solitary result (omnipolar), two outcomes (twin unipolar), locked outcome (bipolar), or one pole (unipolar). Normally, if the area is stemmed from a south post, the result voltage will be positive. If the field source is a north pole, the outcome voltage will be negative. Our company just recently created a family of low-power Hall-effect electronic buttons and also latches for digital Hall-effect sensing units.

Linear Hall Sensor are often called ratiometric Hall-effect sensing units, because the outcome is a proportional signal that varies linearly with respect to the used magnetic field; the supply voltage determines the result range. To avoid utilizing numerous materials to predisposition the differential amplifier stage, an employed balanced out (null voltage) changes the result to the positive range. Likewise, because a Hall-effect sensor saturates near the maximum and also minimum worths, the straight region is usually specified by couple of hundred millivolts above ground and also a couple of hundred millivolts listed below the supply voltage.

Hall-effect sensors have several features that make them eye-catching for the structure automation and also personal electronics markets. What complies with are a number of usage instances where these sensors allow various functions for different end equipment.
